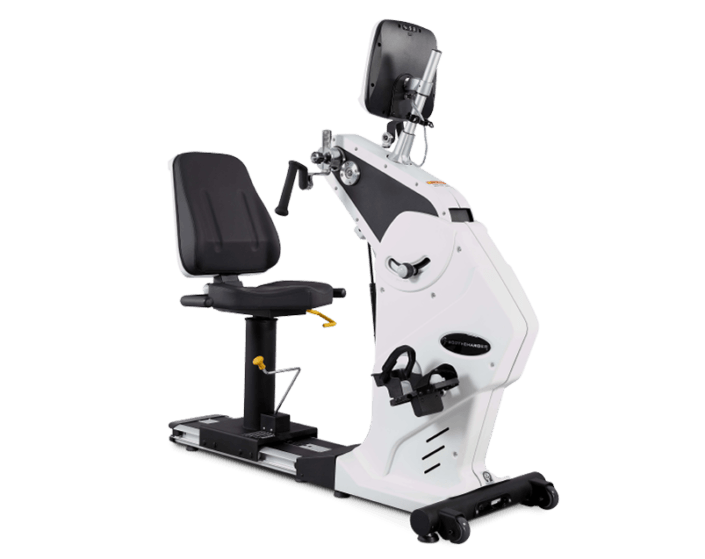

TOTAL BODY TRAINER PRO GB7009

TOTAL BODY TRAINER PRO


GB7009

Active Series- Master Total Body Trainer Pro works with upper body ergometer and recumbent bike and is equipped with a wide range of people. Exercising range from adults, elderly people, disabled to physiotherapy, efficient exercising is achieved thanks to total body ergometer. This innovative design and advancing technology “Brain Game” console system is increasing coordination for far away dementia.
Body Charger Total Body Trainer is a versatile investment accommodating a wide range of users, exercise goal, and workout types making it perfect for almost any purpose.

COMPATIBLE:

ENJOY THE VIEW

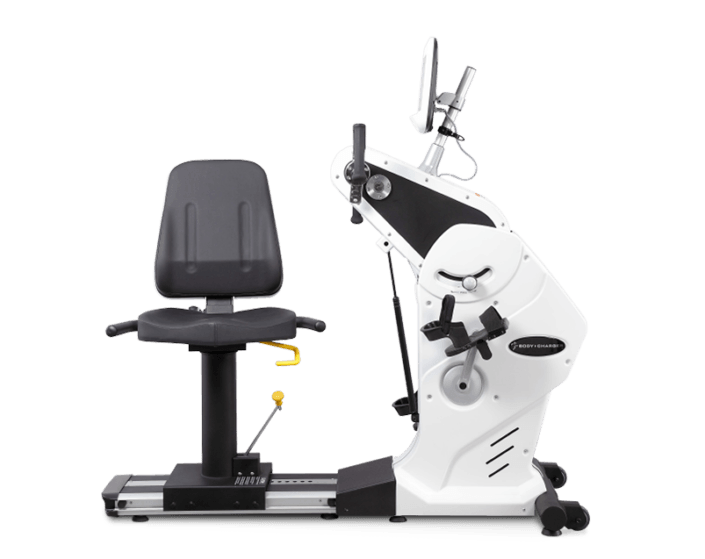

SMART CONSOLE

10.1 INCH TFT LCD Console


Body Charger all cardio products feature a user orientation technologiesthat make our products more humanity, versatile and interactive.

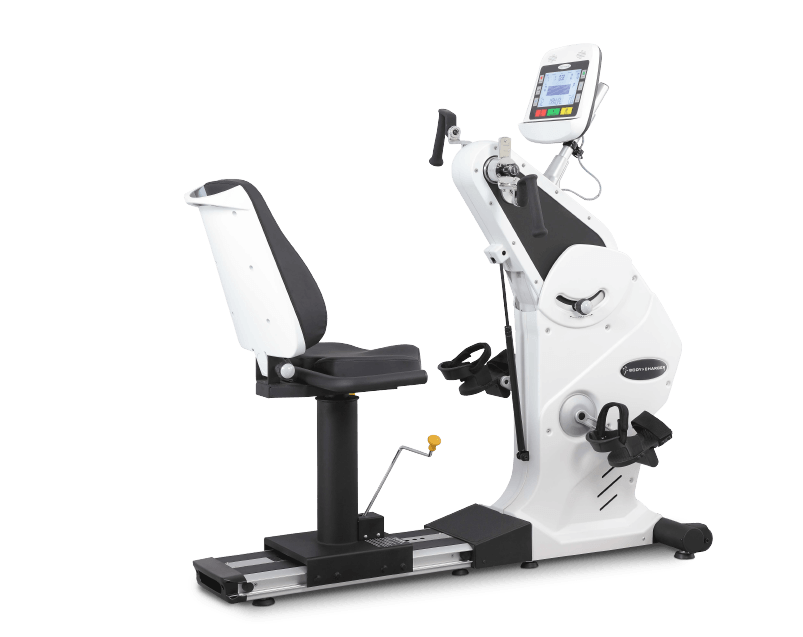

STANDARD CONSOLE

9 INCH LCD Console


It includes workout calendar that can save with USB, which enables each user to store past exercise data at anytime.

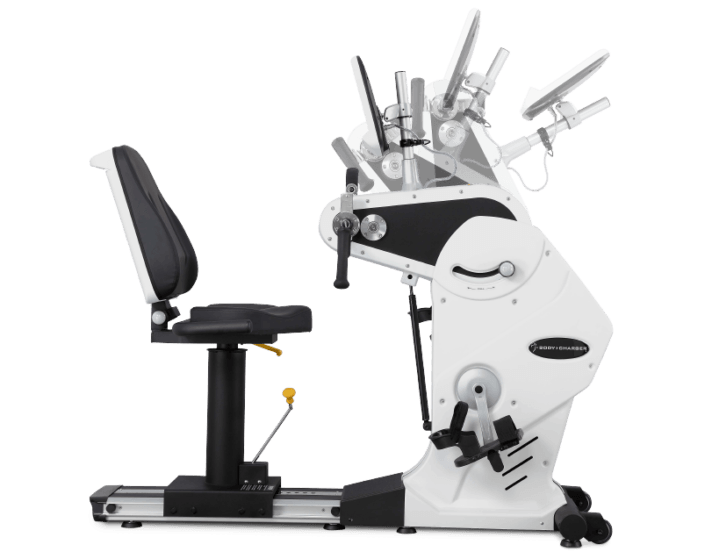

THE POWER TO LEAD


The 3-length settings radius length admitted the STRONGER hands can affect the WEAKER ones to contribute a balance issue of his stride, and ultimately its exercise result.

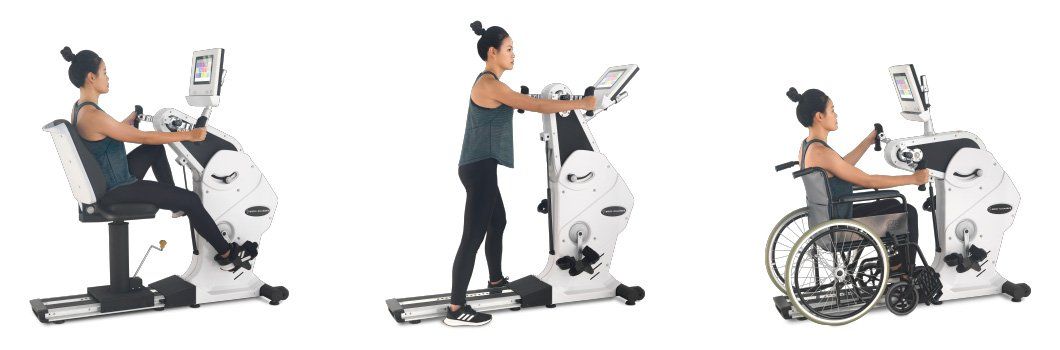

STANDING . SITTING . WHEELCHAIR

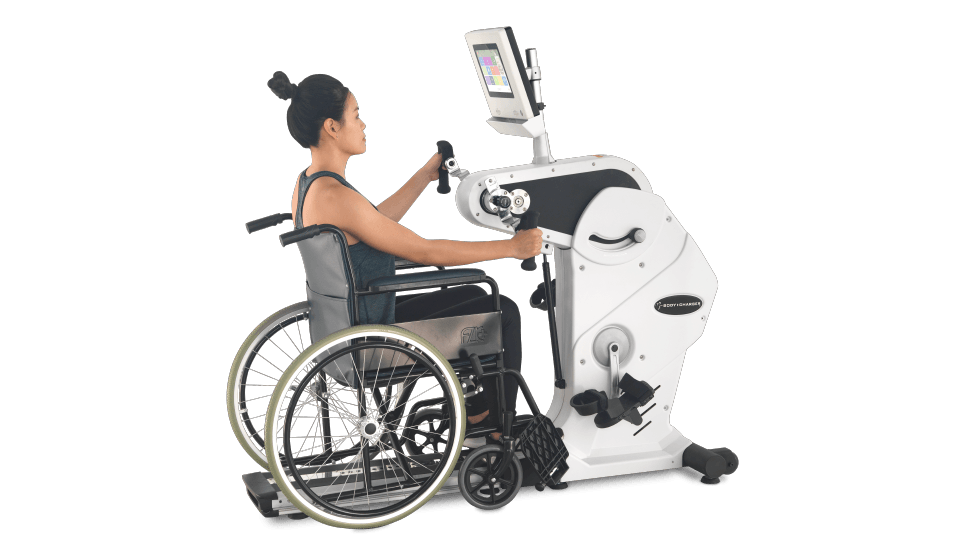

Body Charger Total Body Trainer Pro features independent arm and leg motion allows users to work their upper body with standing or total body with sitting position independently. This specific exercise machine is friendly for wheelchair persons with rehabilitation, physical therapy, or daily wellness exercise to help them meet their training purpose.

FEEL LIKES ORDINARY

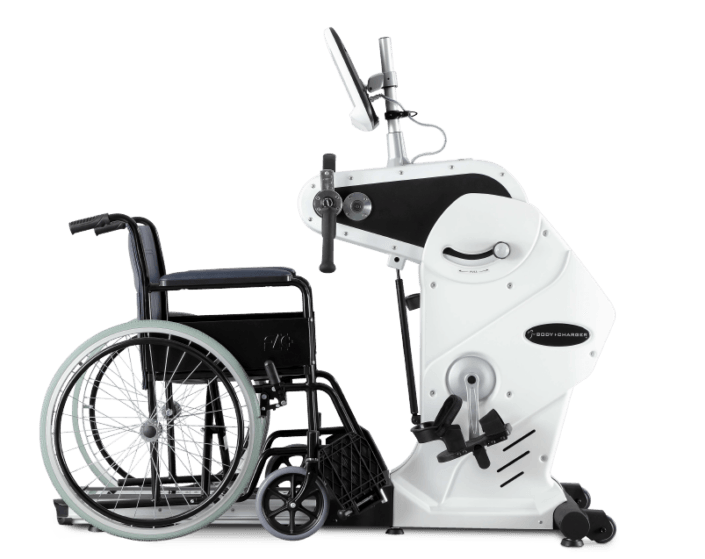

Simply slide the seat off from the rail for wheelchair access. The removable seat with transportation wheels on GB7009 Total Body Trainer Pro can makes it easily for storage.

YOUR FINEST VINTAGE ON SEAT

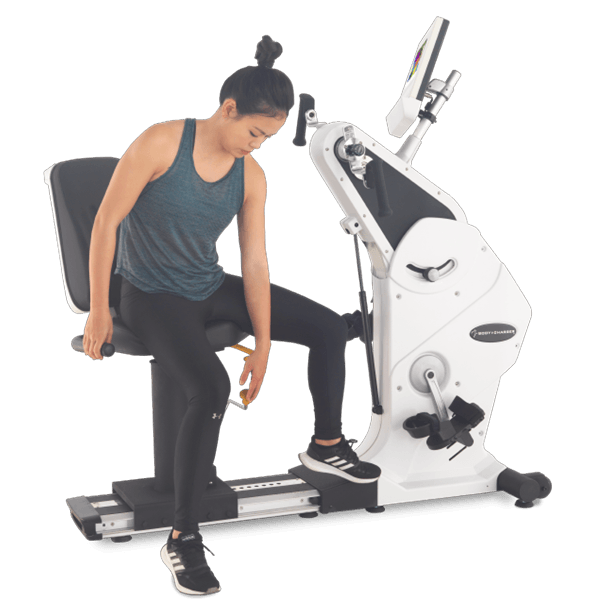

360° Swivel Seat features a comfortable, oversized seat and it’s easier for the user to ingress/egress.

QUALITY COMES IN TWO

Bi-Directional Exercise allows the user exercise in both the forward and reverse directions to train the difference muscle group you want.

MATCH MADE IN YOUR BODY

GB7009 Total Body Trainer Pro offers the flexibility of 3 different height for Lower Body, Core and Upper body exercise purpose.

  • FEATURES

    Bi-Directional ●

    Low Watts Starting ●

    Total Body Training ●

    Independent System

    ( Upper/ Lower)

    Low Step-Through Design ●

    Seat Design 20″ Oversized Seat

    Swivel Seat Function 360°

    Reclining Seat Adjustment 3 Levels/ 12°

    Seat Adjustment 14, Fully Horizontal Adjustment

    Removable Seat Function ●

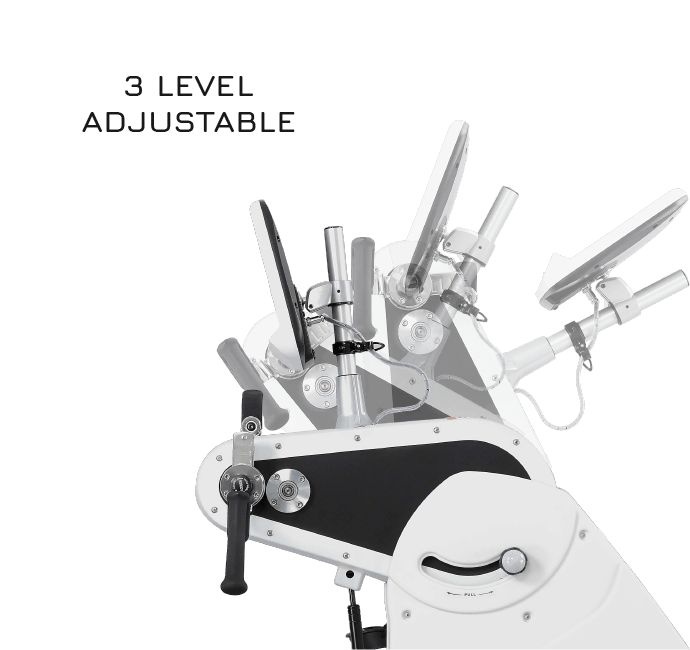

    Adjustable Upper Crank 3 Levels

    Adjustable Lower Crank –

    Handlebar Design Ergo-Grip Rotating Handlebar

    Pedal Design Orthopedic Rehab Pedal with Neoprene Supportive Heel Cup

    Wheels for Easy Mobility ●

    Wheelchair Accessible ●

    Energy Saving Mode ●

    Certificated CE

  • STANDARD CONSOLE

    Display Type 9″ White Backlit LCD

    Exercise Programs 20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1

    Display Feedback Time, Level, Pulse, Distance, Calories, RPM/ SPM, Watts, METs, Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad ●

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language –

    Entertainment System –

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless –

    NFC –

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) –

    Headphone Plug –

    RS232 Port –

  • SMART CONSOLE

    Display Type 10.1″ TFT IPS Touch Screen

    Exercise Programs 16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games

    Display Feedback Time, Level, Pulse, Distance, Calories, METs / Watt, RPM / Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad –

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language EN, ZH-TW, ZH-CN, JP

    Entertainment System ●

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless ●

    NFC ●

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) Embedded

    Headphone Plug ●

    RS232 Port ●

  • RESISTANCE SYSTEM

    Operation System EMS System

    (Electromagnetic)

    Resistance Levels 32 Levels

    (Standard Console)

    36 Levels

    (Smart Console)

    Power Requirements Input: 100 – 240 VAC

    ~ 50/60Hz, 1.5A Max

    Output: DC30V-2.0A

  • TECH SPEC.

    Max. User Weight 226 kg / 500 lbs.

    N.W. 130 kg / 286 lbs.

    G.W. 138 kg / 304 lbs.

    Overall Dimensions

    (L x W x H) 152 x 72 x 141 cm

    / 60” x 28.5″ x 55.5″

  • PACKING DETAILS

    Container loading 1 x 20″ 22 pcs

    Container loading 1 x 40″ 50 pcs

    Carton Dimensions

    (L x W x H) 160 x 65 x 110 cm

    / 63″ x 25.5″ x 43″

  • ACCESSORY

    GA001RF

    Safety Retractable Seat Belt ●

    GA002RF

    Wireless Chest Belt ●

    GA003RF

    Assistive Hand Grip Gloves ●

    GA004RF

    Adjustable Lateral Calf Support Set ●

    GA006RF

    Workplace Accessory-Square Tube –

    GA007RF

    EZ Accessory –

    GA008RF

    Orthopedic Wide Rehab Pedal –

    GA009RF

    Fitness Tracker ●

    GA0010RF

    Arm Rest ●

    GA0011RF

    Deluxe Seat ●
