GB7016 Recumbent IEStep

Recumbent IEStep
GB7016

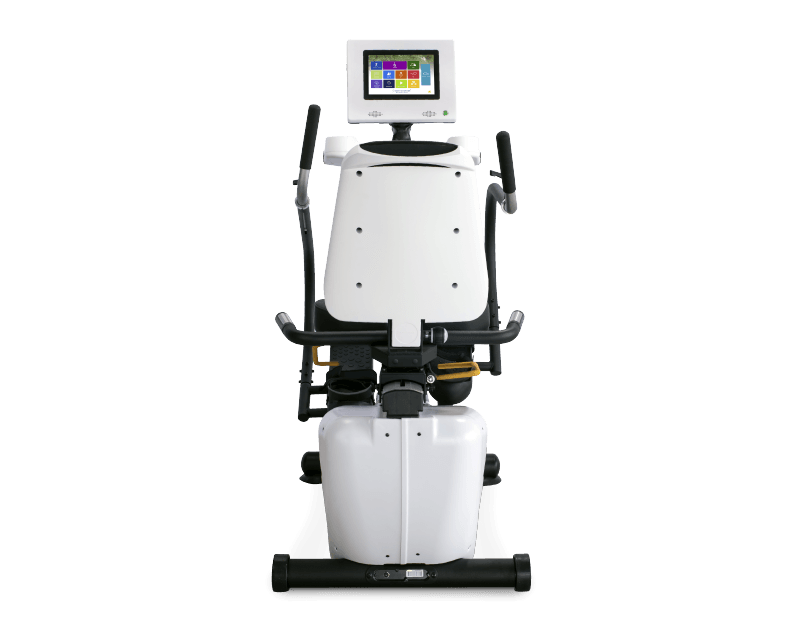

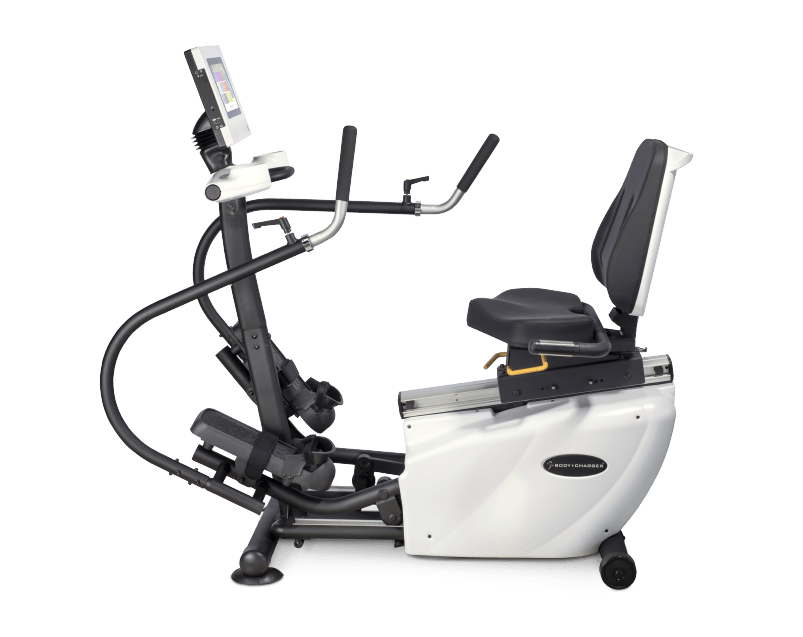

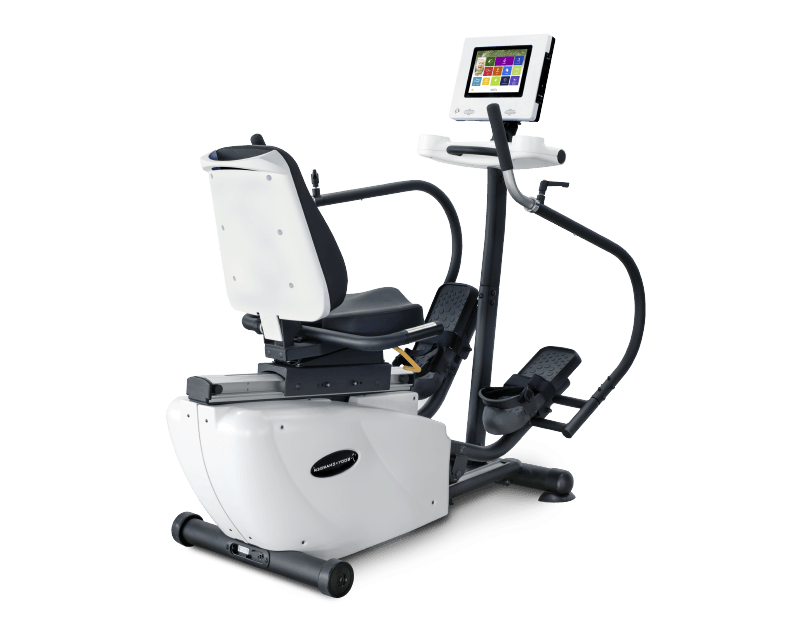

Body Charger GB7016 Recumbent IEStep, is a side-to-side recumbent ipsilateral cross trainer. Utilization of older persons allows for increasing gait balance and body coordination.

COMPATIBLE:

ENJOY THE VIEW

SMART CONSOLE

10.1 INCH TFT LCD Console


Body Charger all cardio products feature a user orientation technologiesthat make our products more humanity, versatile and interactive.

STANDARD CONSOLE

9 INCH LCD Console


It includes workout calendar that can save with USB, which enables each user to store past exercise data at anytime.

BEING SMOOTH IS QUIETER


GB7016 Recumbent IEStep with Aluminum Rails offers a smooth, quiet, and effective exercise experience.

CHALLENGE YOUR BODY

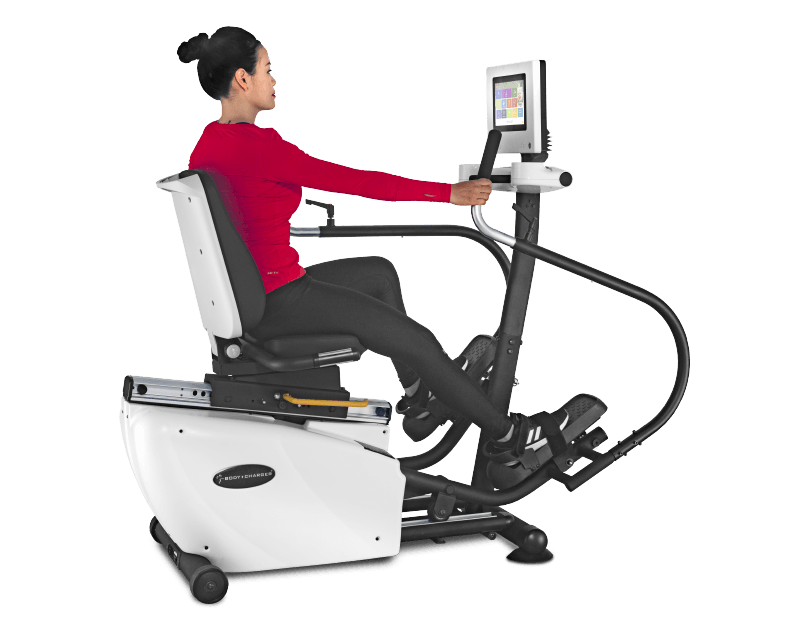

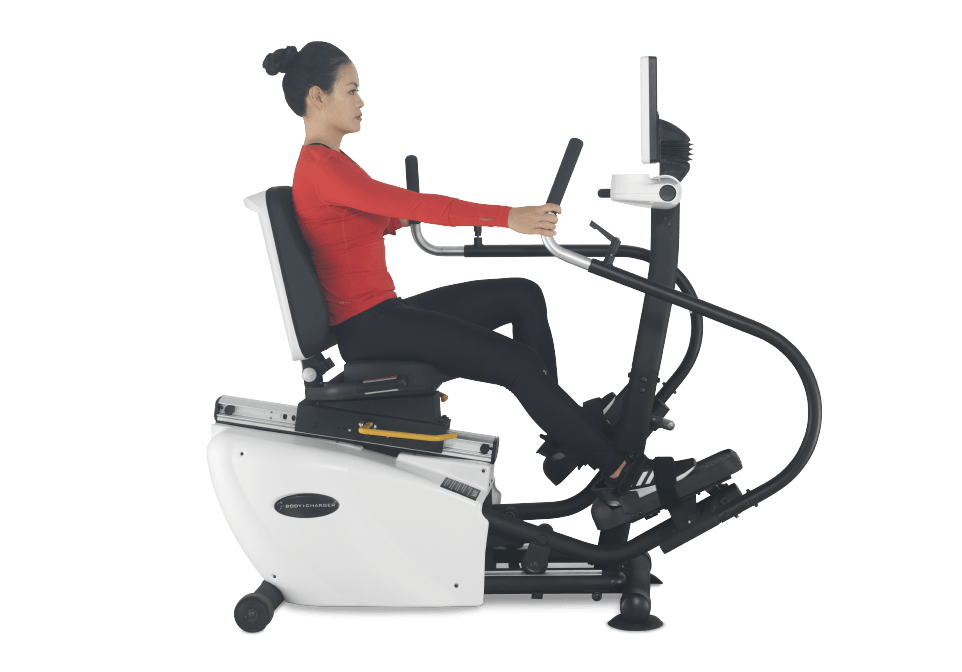

Ipsilateral Movement, Side to Side Motion, is a unique way to challenge your body, toning the different muscle groups that help promote better body balance and coordination.

QUALITY COMES IN TWO

Bi-Directional Exercise allows the user exercise in both the forward and reverse directions to train the difference muscle group you want.

YOUR FINEST VINTAGE ON SEAT

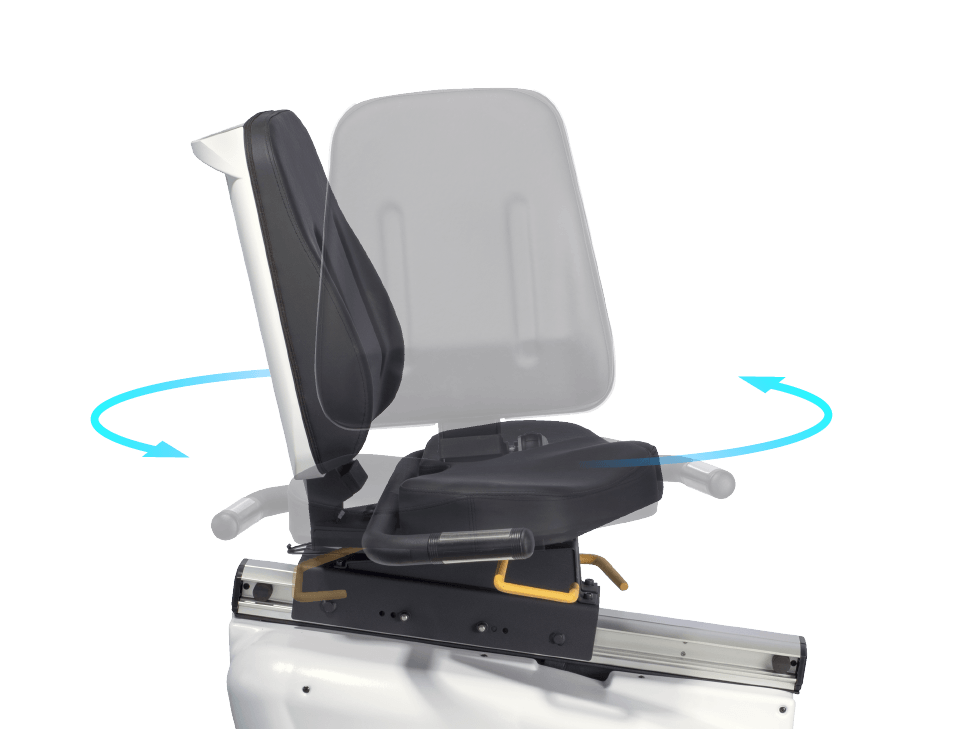

180° Swivel Seat features a comfortable, oversized seat and it’seasier for the elderly and rehabilitation users to ingress/egress.

BIGGER . SAFEST

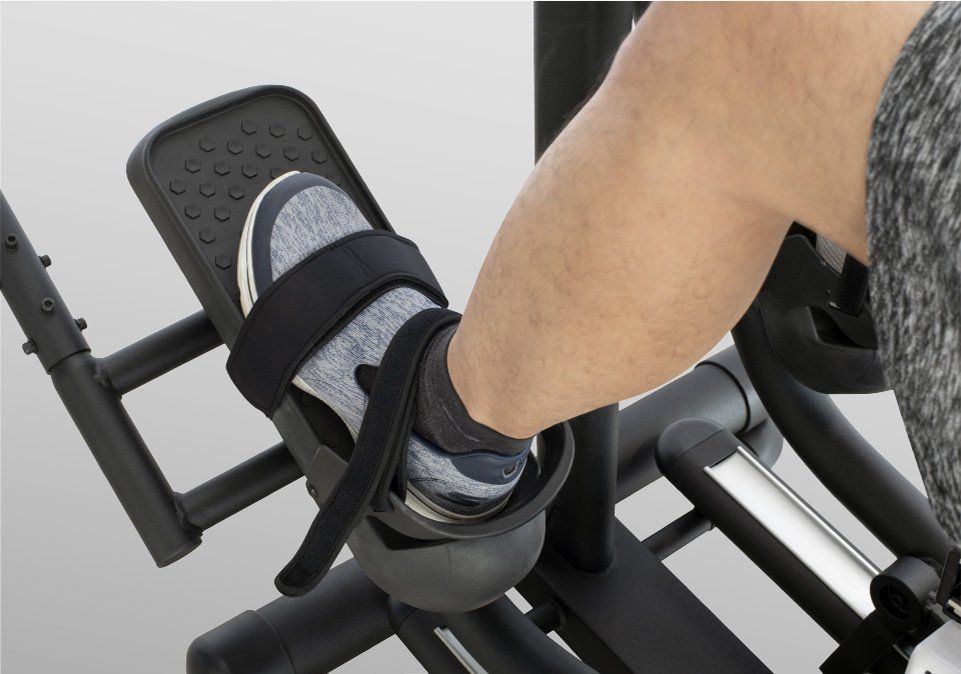

Orthopedic Foot and Heel Support Pedal reduces the risk of injury, and increasing support to weak joints.

  • FEATURES

    Bi-Directional ●

    Low Watts Starting ●

    Total Body Training ●

    Independent Stepping Motion

    Low Step-Through Design –

    Seat Design 20″ Oversized Seat

    Swivel Seat Function 180°

    Reclining Seat Adjustment 3 Levels / 12°

    Seat Adjustment 14, Fully Horizontal Adjustment

    Removable Seat Function –

    Handlebar Adjustment 10 Levels

    Adjustable Console Angle ●

    Handlebar Design Easy-Grip Handlebar with Anti-Slip Surface

    Pedal Design Orthopedic Rehab Pedal with Neoprene Supportive Heel Cup

    Wheels for Easy Mobility ●

    Wheelchair Accessible –

    With Accessory Holder ●

    Energy Saving Mode ●

    Certificated CE

  • STANDARD CONSOLE

    Display Type 9″ White Backlit LCD

    Exercise Programs 20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1

    Display Feedback Time, Level, Pulse, Distance, Calories, RPM / SPM, Watts, METs, Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad ●

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language –

    Entertainment System –

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless –

    NFC –

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) –

    Headphone Plug –

    RS232 Port –

  • SMART CONSOLE

    Display Type 10.1″ TFT IPS Touch Screen

    Exercise Programs 16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games

    Display Feedback Time, Level, Pulse, Distance, Calories, METs / Watt, RPM / Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad –

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language EN, ZH-TW, ZH-CN, JP

    Entertainment System ●

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless ●

    NFC ●

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) Embedded

    Headphone Plug ●

    RS232 Port ●

  • RESISTANCE SYSTEM

    Operation System EMS System

    (Electromagnetic)

    Resistance Levels 32 Levels

    (Standard Console)

    36 Levels

    (Smart Console)

    Power Requirements Input: 100 – 240 VAC

    ~ 50/60Hz, 1.5A Max

    Output: DC30V-2.0A

  • TECH SPEC.

    Max. User Weight 181 kg / 400 lbs.

    N.W. 103 kg / 227 lbs.

    G.W. 112 kg / 247 lbs.

    Overall Dimensions

    (L x W x H) 170 x 76 x 102 cm

    / 67” x 30″ x 40″

  • PACKING DETAILS

    Container loading 1 x 20″ 30 pcs

    Container loading 1 x 40″ 63 pcs

    Carton Dimensions

    (L x W x H) 143 x 85 x 70 cm

    / 56″ x 33.5″ x 27.5″

  • ACCESSORY

    GA001RF

    Safety Retractable Seat Belt ●

    GA002RF

    Wireless Chest Belt ●

    GA003RF

    Assistive Hand Grip Gloves ●

    GA004RF

    Adjustable Lateral Calf Support Set ●

    GA006RF

    Workplace Accessory-Square Tube –

    GA007RF

    EZ Accessory –

    GA008RF

    Orthopedic Wide Rehab Pedal –

    GA009RF

    Fitness Tracker ●

    GA0010RF

    Arm Rest ●

    GA0011RF

    Deluxe Seat –

● Standard / ─ Not offered / * Bluetooth module sold separately
