GB5050 Upper and Lower Body Trainer Pro

UPPER AND LOWER BODY TRAINER PRO


GB5050

Bi-directional function with electronic magnetic resistance controlled upper body (Arm Ergometer& lower body (Pedal Exerciser) rehab trainer. The GB5050 Upper and Lower Body Trainer Pro can be operated either on a table top or on the ground with affordable budget.

COMPATIBLE:

ENJOY THE VIEW

SMART CONSOLE

10.1 INCH TFT LCD Console


Body Charger all cardio products feature a user orientation technologiesthat make our products more humanity, versatile and interactive.

STANDARD CONSOLE

9 INCH LCD Console


It includes workout calendar that can save with USB, which enables each user to store past exercise data at anytime.

THE POWER TO LEAD


The 3-length settings radius length admitted the STRONGER hands can affect the WEAKER ones to contribute a balance issue of his stride, and ultimately its exercise result.

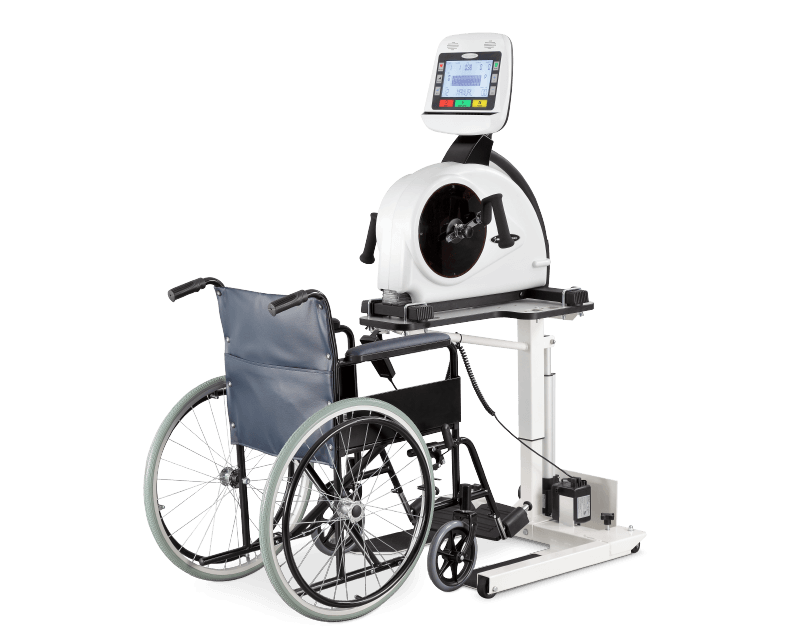

STANDING . SITTING . WHEELCHAIR

Body Charger Total Body Trainer Pro features independent arm and leg motion allows users to work their upper body with standing or total body with sitting position independently. This specific exercise machine is friendly for wheelchair persons with rehabilitation, physical therapy, or daily wellness exercise to help them meet their training purpose.

FOLLOWING YOUR HEART

Easy-Go Handlebar is a good solution for movement in the facilities is important due to the increased utilization rate.

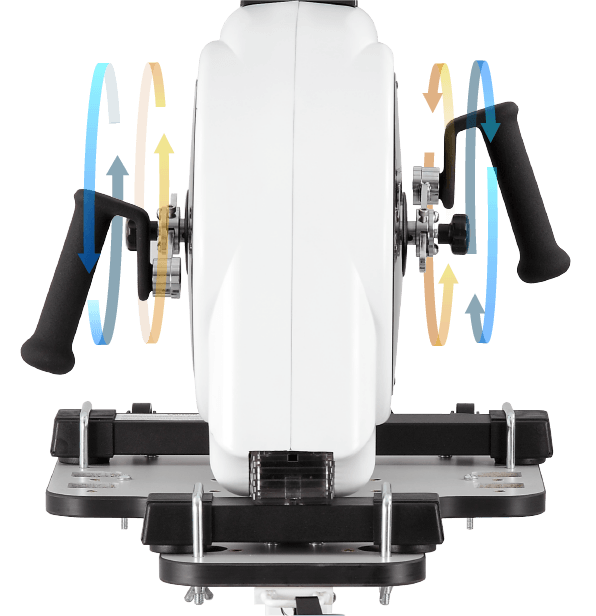

QUALITY COMES IN TWO

Bi-Directional Exercise allows the user exercise in both the forward and reverse directions to train the difference muscle group you want.

THE PERFECT MISSION AWAITS

Compatible with GB5050 MX Motorized UBE Table fully-electric height adjustment system from 67 – 97 cm/ 26” – 38”.

  • FEATURES

    Bi-Directional ●

    Low Watts Starting ●

    Upper Body Training ●

    Lower Body Training

    (with Optional Accessory) ●

    (with GA008 RF Orthopedic Wide Rehab Pedal)

    Adjustable Console Angle ●

    Adjustable Crank Position 3 Levels, 90 mm~130 mm

    Handlebar for Movement ●

    Adjustable Height –

    Wheelchair Accessible ●

    With Accessory Holder ●

    Energy Saving Mode ●

    Certificated CE

  • STANDARD CONSOLE

    Display Type 9″ White Backlit LCD

    Exercise Programs 20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1

    Display Feedback Time, Level, Pulse, Distance, Calories, RPM/ SPM, Watts, METs, Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad ●

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language –

    Entertainment System –

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless –

    NFC –

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) –

    Headphone Plug –

    RS232 Port –

  • SMART CONSOLE

    Display Type 10.1″ TFT IPS Touch Screen

    Exercise Programs 16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games

    Display Feedback Time, Level, Pulse, Distance, Calories, METs/Watt, RPM/Speed

    Compatible Apps Optional, Kinomap/Zwift App

    Capacitance Touchable Keypad –

    USB Port ●, Export Workout Data, Software Upgrade and Charging

    Quick Start ●

    Pause Function ●

    Multi-Language EN, ZH-TW, ZH-CN, JP

    Entertainment System ●

    Bluetooth BT 4.2 (FTMS)* Optional, required for App

    Wireless ●

    NFC ●

    Built-in Heart Rate Monitor (5K) Embedded

    Built-in Heart Rate Monitor (Bluetooth) Embedded

    Headphone Plug ●

    RS232 Port ●

  • RESISTANCE SYSTEM

    Operation System A. EMS System

    (Electromagnetic)

    B. DX System

    (Self-Generator Power)

    Resistance Levels 32 Levels

    (Standard Console)

    36 Levels

    (Smart Console)

    Power Requirements Input: 100 – 240 VAC

    ~ 50/60Hz, 1.5A Max

    Output: DC30V-2.0A

  • TECH SPEC.

    Max. User Weight 120 kg/ 265 lbs.

    N.W. 23 kg/ 51 lbs.

    G.W. 26 kg/ 57 lbs.

    Overall Dimensions

    (L x W x H) 61 x 52 x 76 cm

    / 24” x 20.5″ x 30″

  • PACKING DETAILS

    Container loading 1 x 20″ 177 pcs

    Container loading 1 x 40″ 378 pcs

    Carton Dimensions

    (L x W x H) 65 x 29 x 58 cm

    / 25.5″ x 11.5″ x 23″

  • ACCESSORY

    GA001RF

    Safety Retractable Seat Belt ●

    GA002RF

    Wireless Chest Belt ●

    GA003RF

    Assistive Hand Grip Gloves ●

    GA004RF

    Adjustable Lateral Calf Support Set ●

    GA006RF

    Workplace Accessory-Square Tube –

    GA007RF

    EZ Accessory –

    GA008RF

    Orthopedic Wide Rehab Pedal –

    GA009RF

    Fitness Tracker ●

    GA0010RF

    Arm Rest ●

    GA0011RF

    Deluxe Seat ●

● Standard / ─ Not offered / * Bluetooth module sold separately
